The derivation of aerodynamic properties of the city surface needs accurate and spatially highly resolved information on the surface form (morphometry). Canyon radiation models, dispersion models, remote sensing approaches and wind tunnel modeling count on 3d models of urban buildings and trees.
Basel-Sperrstrasse
Data : ©

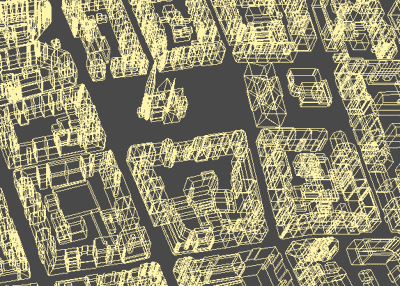

For the surrounding of the main urban sites Basel-Sperrstrasse
and Basel-Spalenring, and for the tracer
experiment domain, high resoluted 3d building data is available either
in raster or in vector format (DXF). Data is provided by the
authorities of the city of Basel (GVA
Grundbuch- und Vermessungsamt Basel-Stadt). For the suburban site no
digital data is available at this time.
 |

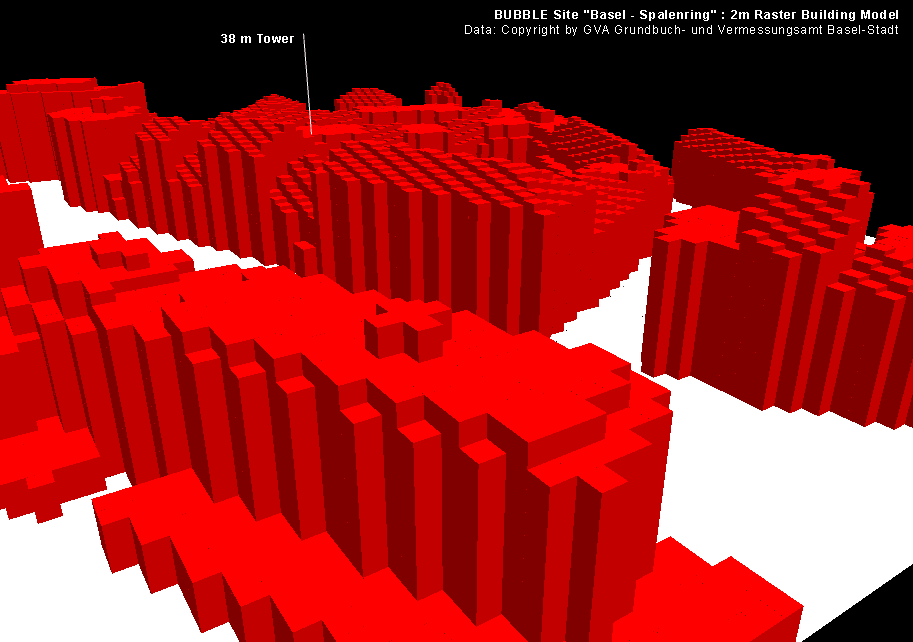

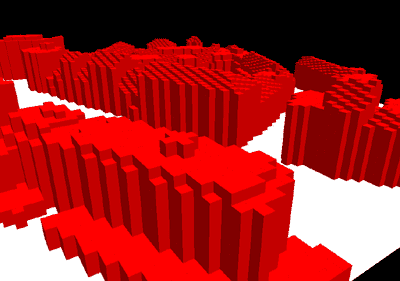

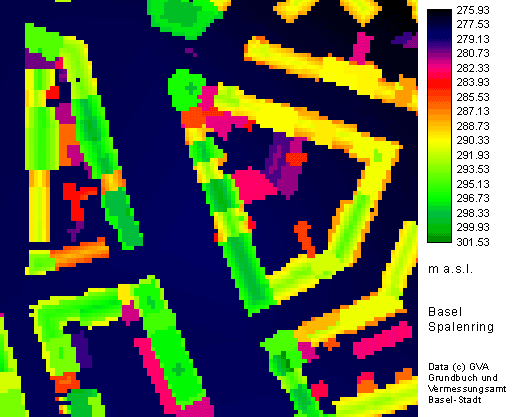

Raster data model with a horizontal resolution of 2m for the surrounding
of the site Basel-Spalenring 2002. Same
subset as shown on the left. Data : © GVA Grundbuch- und Vermessungsamt Basel-Stadt. |
 |

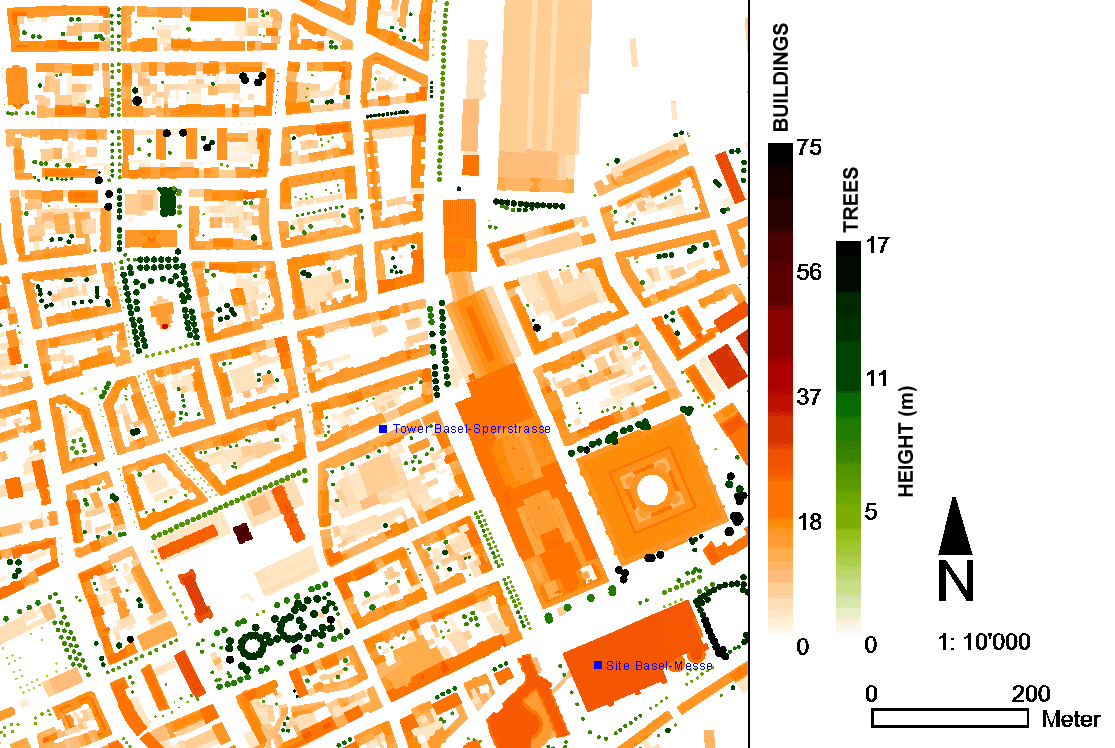

Raster
data (1.25m) of building height including trees around the site "Basel-Sperrstrasse".
1999. Map from diploma thesis Peter Keller, Institute of Meteorology, Climatology and Remote Sensing, University of Basel, 2000. Data : © GVA Grundbuch- und Vermessungsamt Basel-Stadt. |
 |

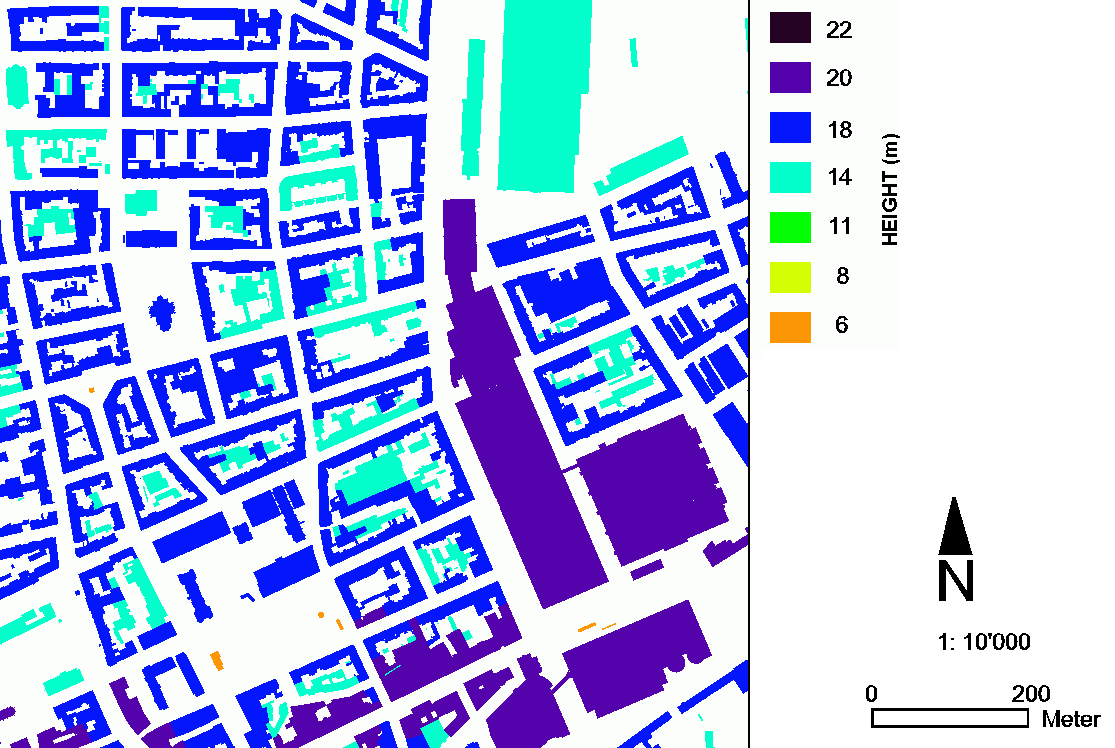

Same
city part with raster
data of the "Zonenplan" (this map illustrates the maximum
height that is allowed to build. This dataset is available for the
whole city of Basel. 1999. Map from diploma thesis Peter Keller, Institute of Meteorology, Climatology and Remote Sensing, University of Basel, 2000. Data : © GVA Grundbuch- und Vermessungsamt Basel-Stadt. |
 |

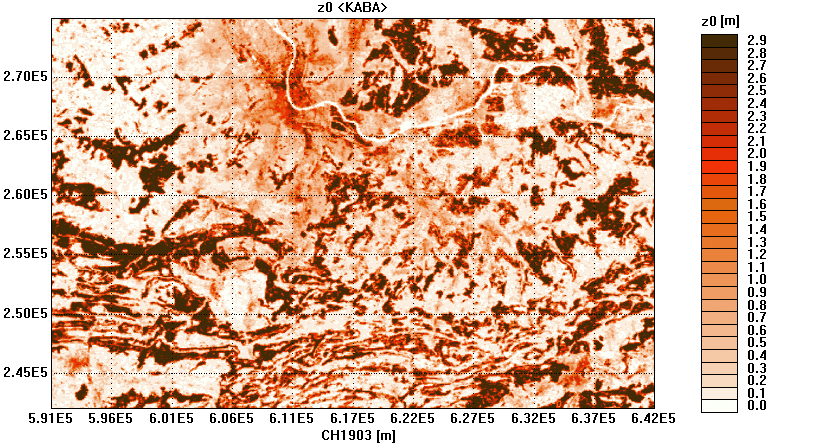

Other
surface related data are available from satellite data analysis
(land-use-classifications). The example illustrates modeled z0-values
for the Basel Region. Map from KABA by U. Fehrenbach, D. Scherer, University of Basel. |
Contact Roland Vogt for more information on 3d-surface data.
>
