Basel
- Messe
This small energy
balance station was deployed on the roof of a
parking building during the IOP
in Summer 2002 by TU
Dresden. The site is located 500 m South-East of Basel-Sperrstrasse
in the dense urban area around "Messe Basel". The 170 by 80 m
large concrete roof is used as a parking lot but was closed to public during
the period of measurements. During the tracer
release experiments tethered balloons were operated at this site.
|
|
| Name |
Basel
-Messe |
| Code |
Ue3
(=Site "9" for tracer
experiments) |
| Site-Code |
BMES |
| Location
easting |
612200
m |
| Location
northing |
268070
m |
| Height
a.s.l. |
255
m (street level)
282 m (roof = tower base) |
| Height
of measurement |
EC at
2.2m above flat roof |
| Mean
building height |
zH
= 18.8 m,
szH
= 6.3m
(1),
Local zH
= 26m (2) |
| Plan
aspect ratio lP |
0.41
(1) |
| Frontal
aspect ratio <lF> |
0.25
(1,3) |
| Complete
aspect ratio lC |
1.64
(1) |
| Surface |
Concrete
parking lot (on top of roof) |
| Land
use |
Urban,
mainly large commercial buildings |
| Shortwave
albedo |
32.7%
(4) |
| Operation
period |
June
24 2002 - July 10 2002 |
(1)
inside 250m circle around the site, without vegetation (data from
digital building model).
(2)
inside 10m circle around the site.
(3) Spatial mean value over all wind directions.
(4) Mean value measured 2.2m above concrete roof (June
24 to July 10 2002). |
|
|
|
 |

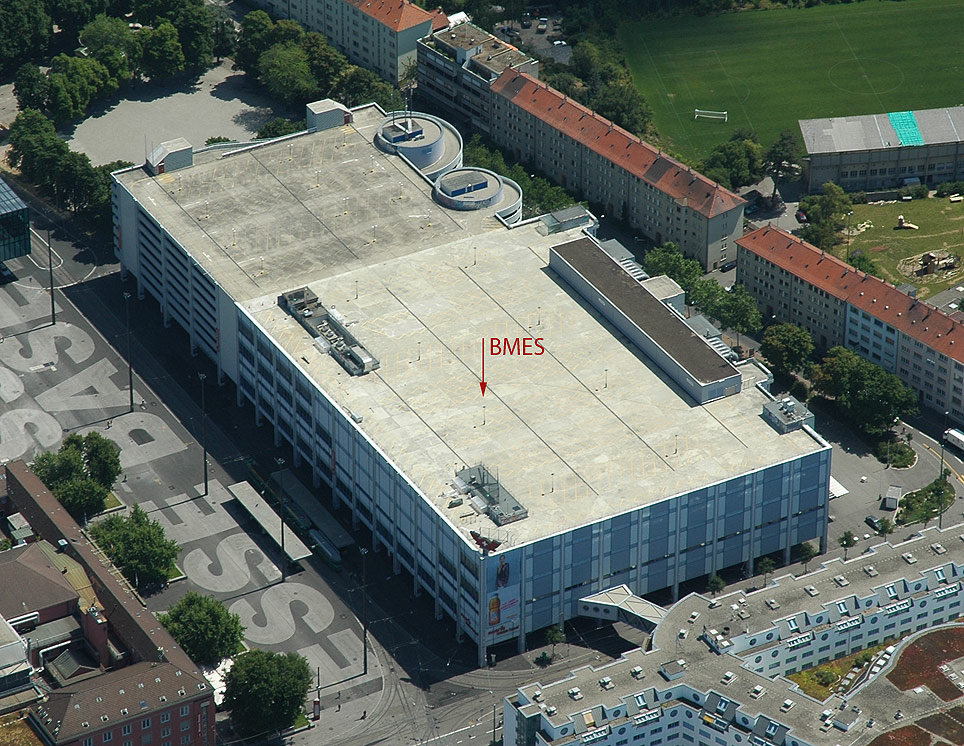

Aerial view of the concrete roof from West (Photo by Roland Vogt, 16.7.2004) |
 |

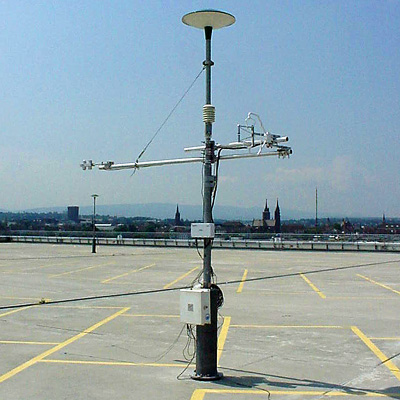

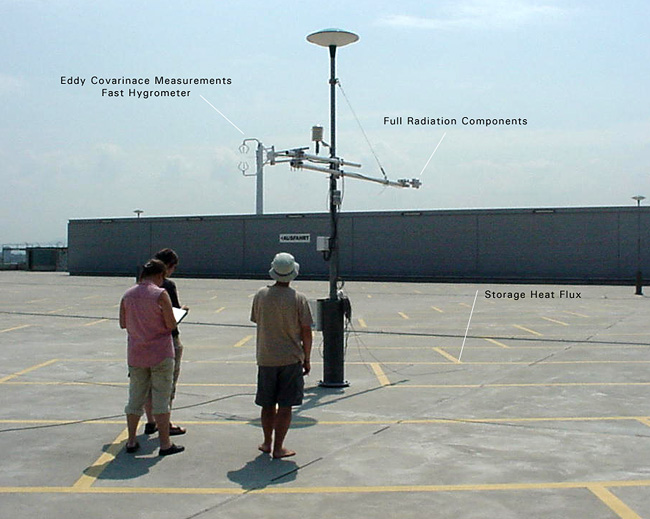

The
Eddy-Covariance System (including a fast hygrometer) was mounted to a
pole on the top of the roof. The CNR1 - radiometer provides full
radiation components. Storage heat flux was determined using heat flux
plates that were modified with same surface properties (25.6.2002) |
 |

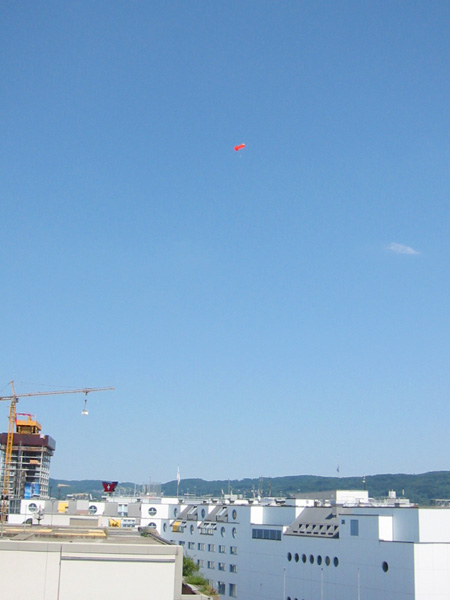

The
tethered balloon was operated at Messe-Basel on June 26 and July 4,5
2002 by TU
Dresden and University
of Freiburg (5.7.2002). Photo
by Gergely Rigo, University of Basel. |
|
|
