During Summer 2002 (IOP) a pneumatic 16m tower was installed with 3 levels of sonic anemometers and full radiation components at tower top over this "European suburban" surface. The site was operated by ETH Zurich, University of Basel and the Bulagarian National Institute of Meteorology and Hydrology.

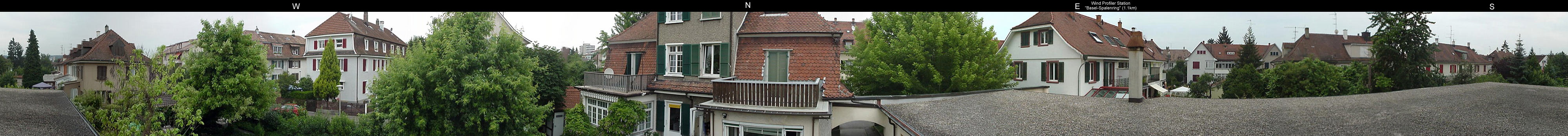

Panorama from the the tower
base at approx. 5m.
(download jpeg-image
including labels) 24.06.2002
Click with mouse down in the image to move around.
 |
Aerial Photo of the station sourrounding approximately 1 x 1 km (Password protected). |
|
||||||||||||||||||||||||||
 |
Measured parameters at Allschwil-Rämelstrasse. |
 |
All data
from Allschwil-Rämelstrasse
are available for BUBBLE-scientists through the BUBBLE-data
download. |
|
|
|
The suburban area of Allschwil
consists of a relatively homogeneous city part with older single and row houses and small streets. It is about 1 km westward of the urban site "Basel-Spalenring", and at least 1 km away from any rural area. In the backyards are many trees and scrubs. Just below the tower there is a large flat roof. |

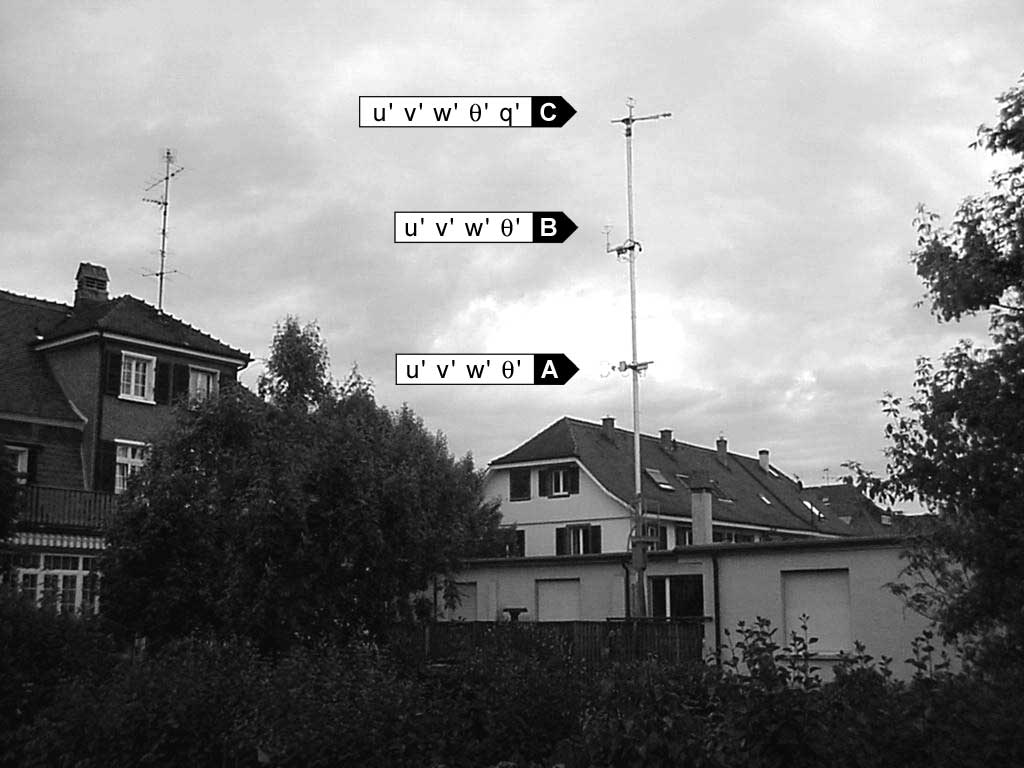

Labeled photograph of the turbulence instrumentation at the tower, photographed from West. Small Large 03.06.2002 |
 |

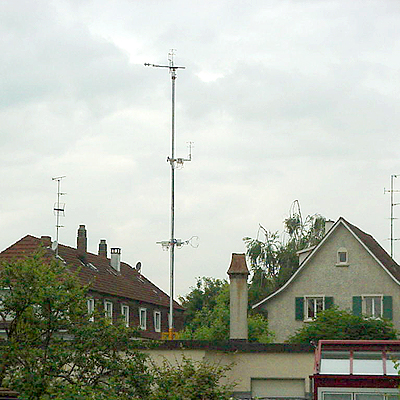

The

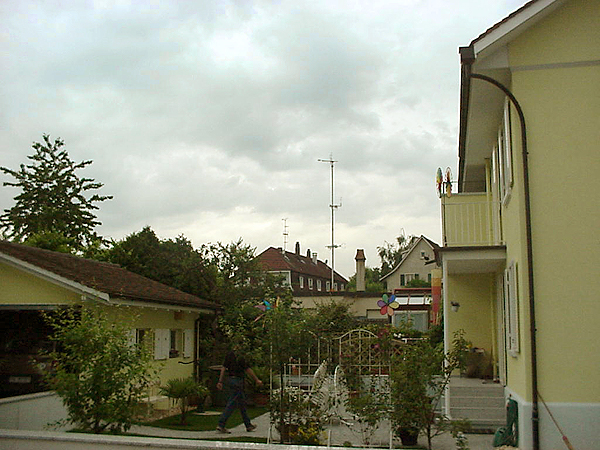

tower photographed from East. The mean building height is approx. 7.5m. 03.06.2002 |
 |
Detailed plan
of the tower in pdf-format.
|
 |

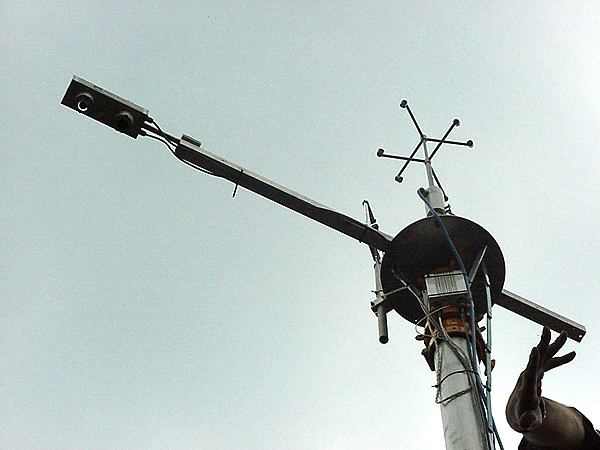

Radiation boom and topmost eddy covariance system (METEK USA-1, Krypton KH20) at 16m. 03.06.2002 |
 |

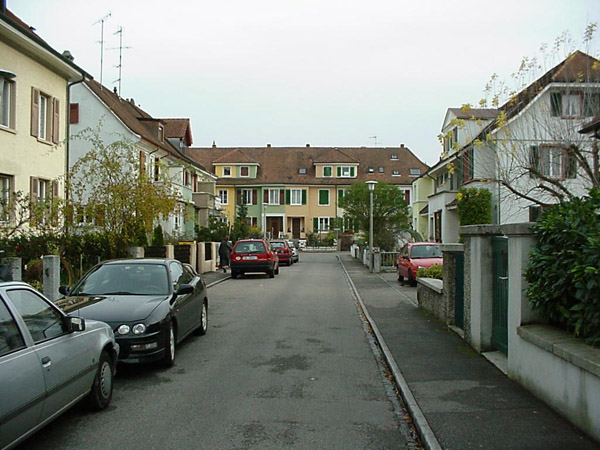

The typical building structure in the "European suburb" consists of single and row houses with relatively small roads. 15m to the right in the picture, the tower was installed. 20.11.00. |
