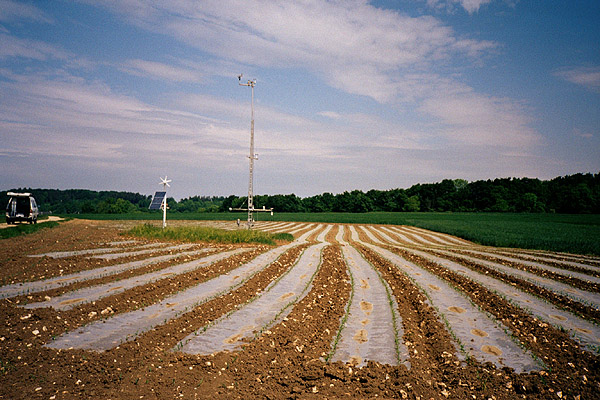

Gempen
The long-term energy
balance station "Gempen" is located approximately 15 km South of
Basel in the Jura mountains. This station of the University
of Basel is similar to Basel - Lange Erlen
and operated since 1991 over agricultural land. The station is located on
a exposed mountain plateau that is 500m higher than the city of Basel.
Therefore in most cases the station indicates
the synoptic wind forcing.
In wintertime the station can be on top
of the inversion, which covers the Rhine-plane.
|
|
| Name |
Gempen |
| Number |
Re4 |
| Code |
GEMP |
| Location
easting |
617640
m |
| Location
northing |
257965
m |
| Height
a.s.l. |
710
m |
| Height
of tower |
10
m |
| Vegetation |
Grassland
/ Agricultural Land |
| Shortwave
Albedo |
18.1
% (1) |
| Operation
period |
1991 - * |
| (1)
Mean value measured 2m above surface (March
15 to July 15 2002). |
|
|
|
 |

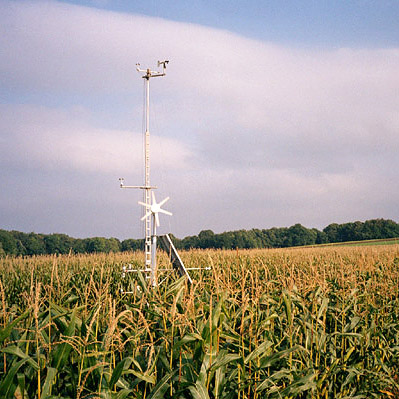

At
the 10m tower "Gempen" profiles of wind and temperature /
humidity are operated. Additionally soil temperature (4 levels) and
soil heat fluxes (3) are measured. 17.05.2000. |
 |

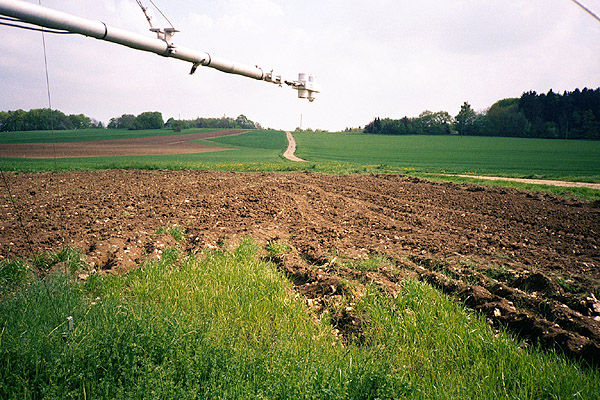

The
radiation instrumentation (Kipp & Zonen CNR1, all components) has
unfortunately a field of view that consists half of grassland and half
of agricultural land. 02.05.2000 |
 |

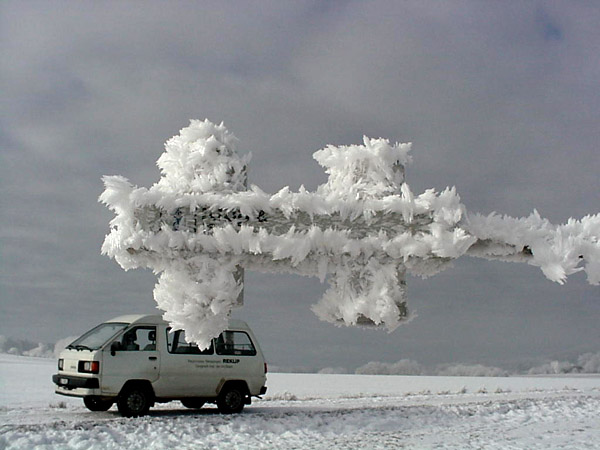

The
iced CNR1 radiometer in winter. 15.01.2002. Photo by
Roland Vogt, University of Basel.
|
|
|
