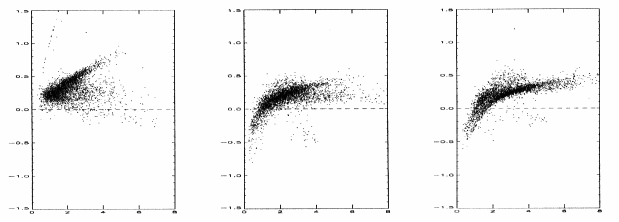

Fig.14: Difference in m/s of
measurement west (VAISALA) minus measurement east (YOUNG)
for the three heights provided with YOUNG-windmonitors
(31m, 50m, 75m above street level),
plotted against the wind velocity west. 30-min mean
values from undisturbed sectors
(120° to 240°, 310° to 60°)
|
